Shaozhou Sports Park Stand Seating Project

The Shaozhou Sports Park project is an important project of the "One Bridge, Three Parks, and Three Roads" project in Shaoguan City. The total construction area of the project is 37800 square meters, and two Chuangxiong grandstands are involved in the installation. The first part is a Grade A sports arena with 6000 seats and a building area of approximately 27000 square meters.

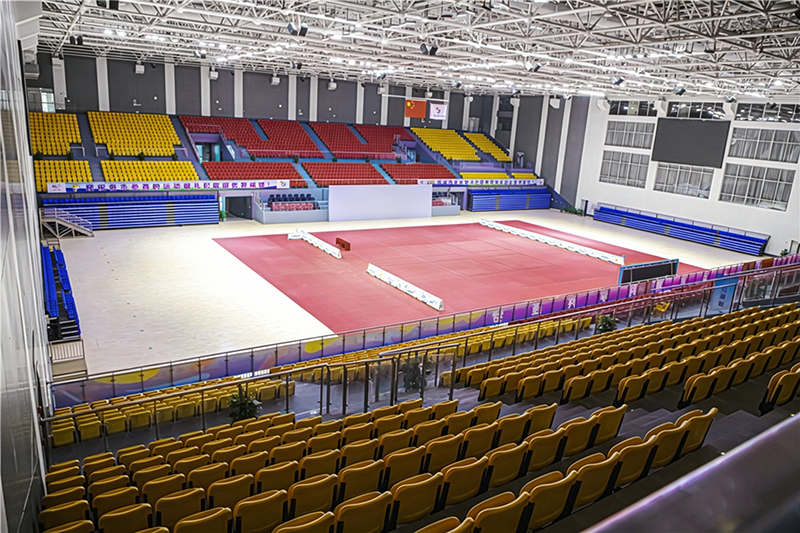

The overall building of the sports arena has one floor, which includes the competition area and various functional rooms. The entire competition area is covered with wooden flooring, with a size of up to 73 meters by 47 meters, making it one of the few large venues in Guangdong Province. There are activity telescopic stands around the ground floor, with a capacity of 1585 people. Even in the fully extended state of the telescopic stands, it can still accommodate 12 official table tennis competition venues.

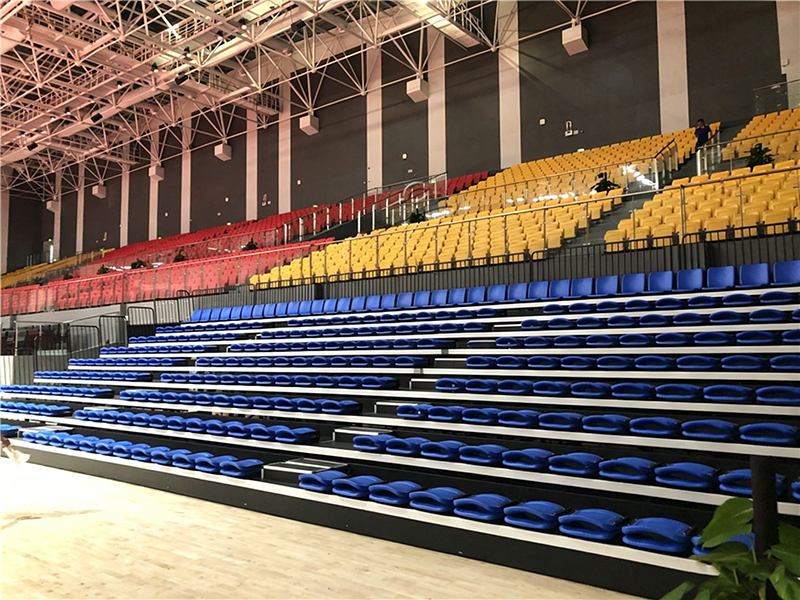

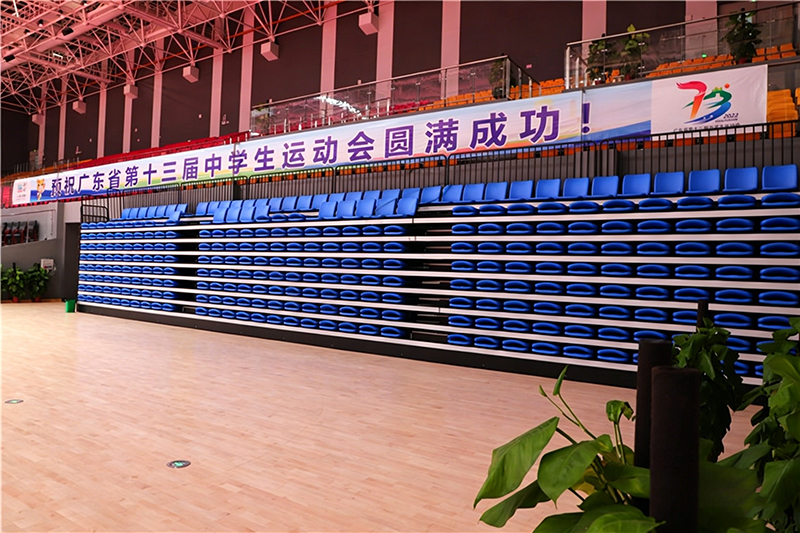

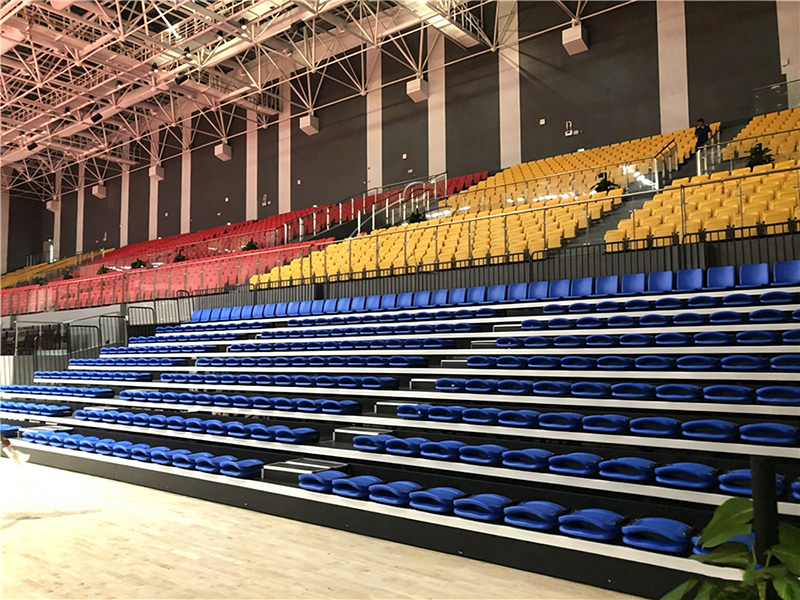

The activity telescopic grandstand on the first floor adopts electric front folding blown seats, which are treated with electrostatic spraying, with a layer width of 850mm and a tail layer width of 500. The first floor height is 330mm, the staggered height is 300mm, and the material for the activity stand pedals is 17mm fireproof and anti-skid stage boards.

The activity stand is electrically controlled to ensure consistent walking distance on both sides, without directional deviation, jamming, slipping, or jumping during extension and retraction. The audience seats in the activity stands are made of high backrest blow molded flip board seats, installed in a front facing manner with a seat distance of 480mm and a total of 1585 seats. Safety guardrails are added to the back and sides (except for the first floor) with a height of 1100mm;

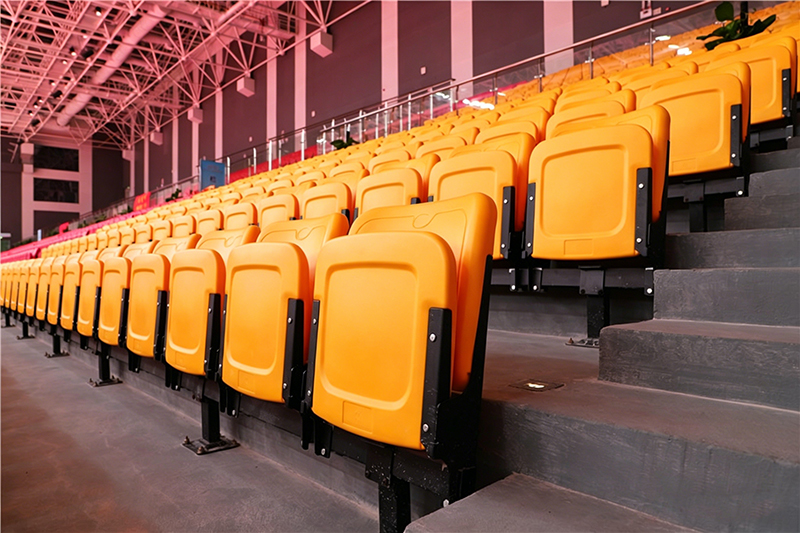

The second and third floors are fixed grandstands, using spring flap seats with the same design as the activity grandstand seats, installed in a standing position. The design, shape, and installation method of the seats comply with international common requirements, which are both aesthetically pleasing and comfortable to sit on, while also considering ease of installation, maintenance, and management, and are equipped with license plates. The seat is designed according to ergonomics, with smooth and simple lines. The material is made of imported high-density polyethylene and high-quality masterbatch particles, and is produced by hollow blow molding technology. Not fading within 5 years. To avoid interference, the seats are equipped with armless flip chairs, with one bracket per seat. The seats are made using high-density polyethylene hollow blow molding technology. Seat requirements: The material for the vertical seat bracket is a 60 * 40 * 2mm rectangular tube; All steel components are pickled and phosphated before undergoing 360 ° hot-dip galvanizing treatment. The seat plate is flipped using gravity folding and equipped with a soundproofing device to ensure the safety and quietness of the flipping process.

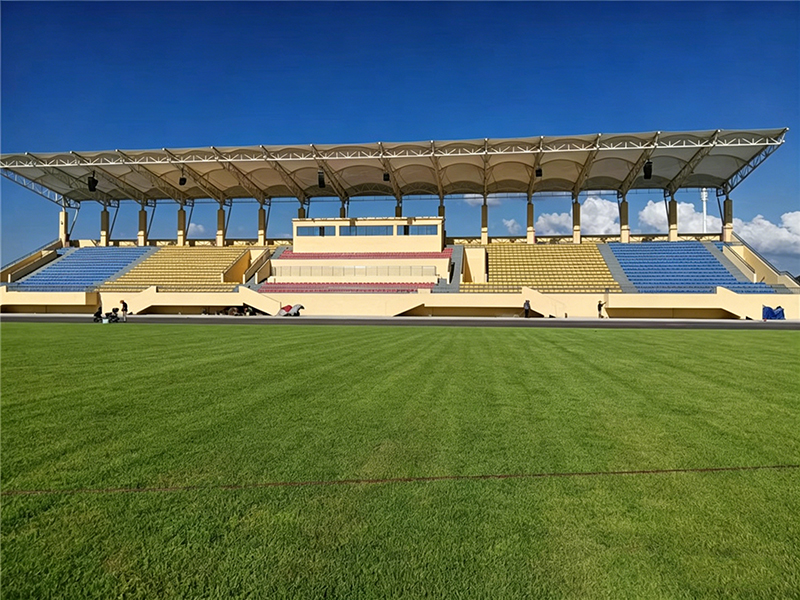

Another venue in Shaozhou Sports Park is an outdoor sports stadium. There are fixed stands on one side of a standard football field.

The outdoor sports stadium stands are equipped with low back hollow blow molded chairs. The design, shape, and installation method of the seats meet international requirements, which are both aesthetically pleasing and comfortable to sit on. At the same time, they are easy to install, maintain, and manage, and are equipped with plaque numbers. The seat is designed according to ergonomics, providing a comfortable sitting experience with smooth and simple lines. The material is made of high-density polyethylene and high-quality masterbatch particles, and is produced using hollow blow molding technology. The seat adopts a flat installation method. Hollow blow molding process integrated molding. Seat material: Made of HDPE (high-density polyethylene) blow molded, impact resistant, anti-aging, and fade resistant. The chair legs are fastened to the cement steps with expansion bolts, and each fastener can withstand a tensile force of over 1000kgf (C22.9 concrete). The comprehensive performance meets relevant national or industry standards, and the service life of the seat is not less than 10 years.
